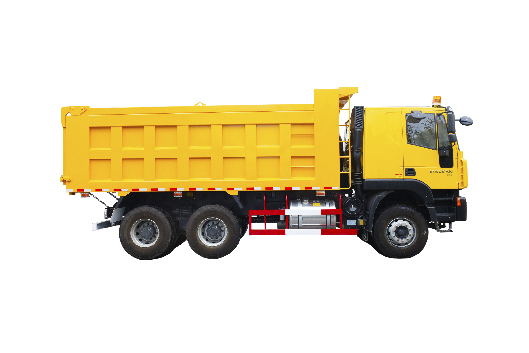

HONGYAN KINGKAN 6X4 Tipper
HONGYAN KINGKAN 6X4 tipper (LHD) with WP10.380E32 380HP engine, 39,500 kg G.V.W., 19.32 cbm dump body and EURO II emission, built for heavy-duty construction and mining haulage.
RFQ basis
Read MoreSpecifications
| Model | CQ3254HTG384E(A) |
|---|---|
| Driving type | 6X4 |
| Body length (mm) | 5600 |
| Body width (mm) | 2300 |
| Body height (mm) | 1500 |
| Body capacity (cbm) | 19.32 |
| Bottom thickness (mm) | 8 (Q355) |
| Side thickness (mm) | 6 (Q355) |
| Lifting system | JIA HENG front lifting |
| G.V.W. (kg) | 39500 |
| Kerb weight (kg) | 17000 |
| Cabin | Flat roof, short cab, no sleeper |
| Wheelbase (mm) | 3800 |
| Tandem (mm) | 1400 |
| Overall length (mm) | 8285 |
| Overall width (mm) | 2550 |
| Overall height unladen (mm) | 3510 |
| Min. ground clearance (mm) | 300 |
| Engine type | Direct injection, mechanical pump injector, EGR |
| Engine model | WP10.380E32 |
| Cylinders | 6 in line |
| Displacement (L) | 9.726 |
| Turbocharger | Inter-cooling |
| Max power | 380HP/280KW @ 2200rpm |
| Max torque | 1460N.m @ 1200-1600rpm |
| Emission regulation | EURO II |
| Air filter | Desert filter |
| Frame type | Bottle neck, double chassis |
| Frame dimension (mm) | 940-865 (W) 317 (H) |
| Frame section thickness (mm) | 8+8 |
| Tyres | 315/80R22.5 |
| Gearbox | FAST 10JSD160T, manual |
| Clutch | Single plate, diaphragm spiral spring, pull type, 430mm (17") |
| Brakes | 2 independent pneumatic circuits, drum/drum |
| Parking brake | Mechanical with spring cylinder, rear |
| Emergency brake | Combined with parking brake |
| Voltage | 24V |
| Batteries | 2 x 12V, 165Ah |
| Front suspension | Semi-elliptic, 9-leaf, 8/8 pcs |
| Rear suspension | Semi-elliptic, 12-leaf, 12 pcs |
| Shock absorbers | Mechanical |
| Anti roll bar | Rear |
| Steering | Power assisted |
| Axles | 7.5T front axle + 16T x 2 rear axles (hub reduction) |
| Differential lock | Cross and inter axle |
| Available ratio | 5.73 |
| Max speed (km/h) | 80 |
| Fuel tank | 350 liters aluminum with lockable fuel cap |
| Driver seat | Mechanical adjustable |
| Entertainment | MP3 + radio |
| Cab tilt | Manual |
| Air conditioner | Manual |
| Rear view mirror | Luxury manual |
| Windows | Electric |
| Front lamp protection grid | Yes |
| Payment terms | 30% down payment by T/T, 70% balance payable before delivery from the factory by T/T |
| FOB price basis | Based on RO-RO shipment; bulk cargo excludes strap and loading-unloading costs; flat rack container price re-calculated |
Product Detail
The HONGYAN KINGKAN 6X4 Tipper (LHD) is a heavy-duty dump truck engineered for demanding construction, mining and bulk haulage applications. It is powered by a WP10.380E32 engine delivering 380HP/280KW at 2200rpm with a maximum torque of 1460N.m, paired with a FAST 10JSD160T manual gearbox. The 6X4 driving configuration with a 7.5T front axle and 16T x 2 rear axles with hub reduction provides strong load capacity and traction. The 19.32 cbm dump body with Q355 high-strength steel (8mm bottom, 6mm side) is built for durability, while the 350-liter aluminum fuel tank and desert air filter suit harsh operating environments.
