HONGYAN

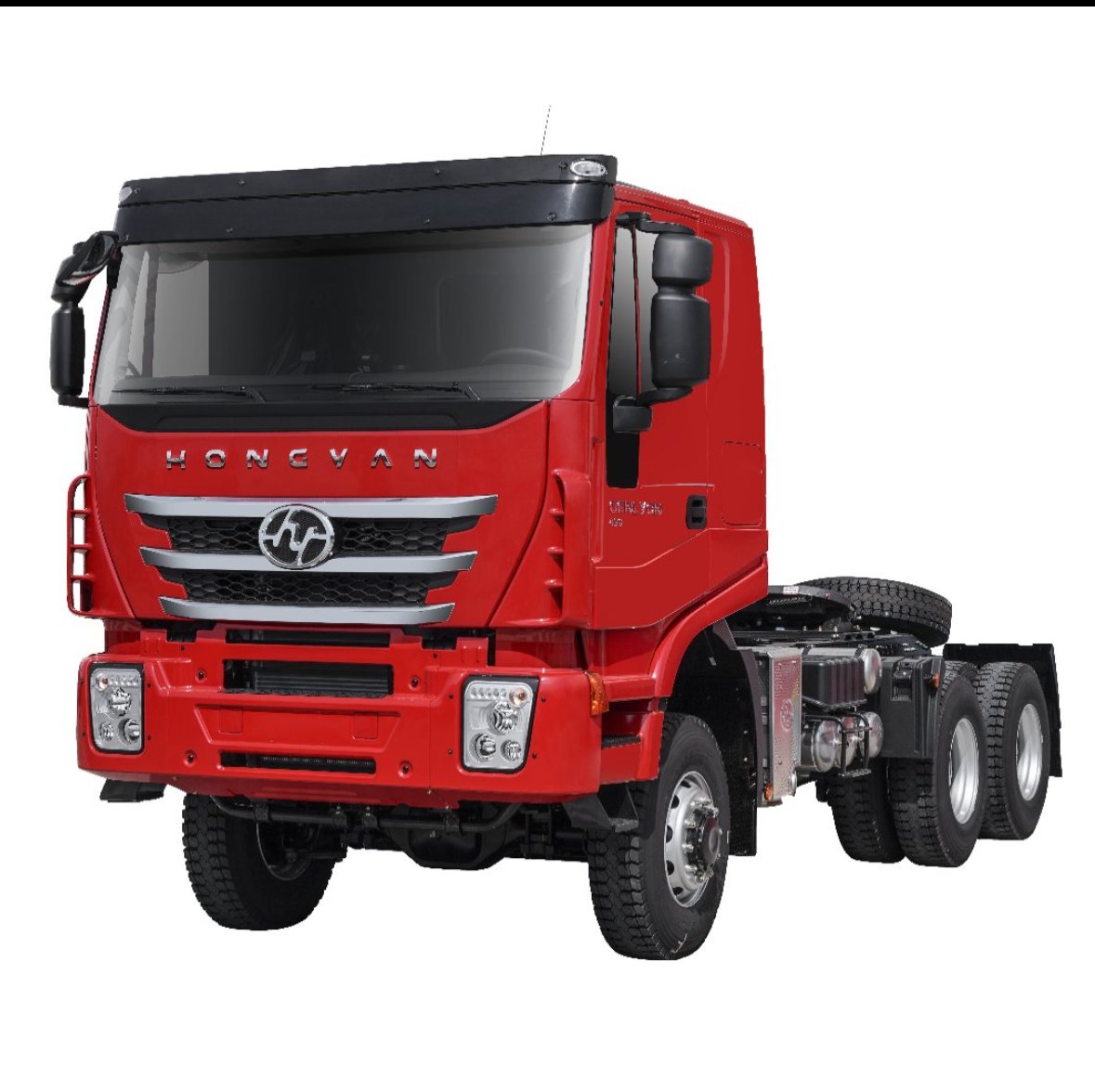

HONGYAN Genlyon 6X6 Tractor
Heavy-duty 6x6 tractor unit with 430 HP engine, 70,000 kg GCW, and rugged off-road capability.
RFQ basis
Inspection File
- 6x6 all-wheel drive for superior off-road traction
- 430 HP high-pressure common rail engine
- 70,000 kg gross combination weight
- 10T front + 18T x 2 rear hub-reduction axles
- Long cab with sleeper for driver comfort
Specifications
| Model | CQ4256HYVG335 |
|---|---|
| Driving type | 6X6 |
| G.C.W. (kg) | 70000 |
| Kerbweight (kg) | 10000 |
| Cabin | Flat Roof, Long Cab with sleeper |
| Wheelbase (mm) | 3800 |
| Tandem rear axle distance (mm) | 1400 |
| Overall length (mm) | 7395 |
| Overall width (mm) | 2550 |
| Overall height unladen (mm) | 3510 |
| Min. ground clearance (mm) | 300 |
| Engine type | High Pressure Common Rail |
| Engine model | C11 430 |
| Cylinders in line | 6 |
| Engine capacity | 11.12L |
| Turbocharger | Water-Cooled |
| Max power | 430HP/316KW@1900rpm |
| Max torque | 2000N.m/1100-1500rpm |
| Emission regulation | EURO V |
| Air filter type | Desert Filter |
| Frame type | Bottle neck, double chassis |
| Frame dimension (mm) | 940-865 (W) 317 (H) |
| Frame section thickness (mm) | 8+8 |
| Tyre standard | 315/80R22.5 |
| Gearbox type | Manual |
| Gearbox model | FAST 12JSDX220TA-B |
| Transfer case brand | TIEMA |
| Clutch type | Single plate, diaphragm spiral spring, pull type |
| Clutch diameter (mm) | 430 (17") |
| Brake type | 2 independent pneumatic circuits, drum/drum |
| Parking brake | Mechanical with spring cylinder, rear |
| Emergency brake | Combined with parking brake |
| Voltage | 24V |
| Batteries | 2 x 12V, 180Ah |
| Front suspension | Semi-elliptic, 9-leaf, 8/8pcs |
| Shock absorbers | Mechanical absorbers |
| Rear suspension | Semi-elliptic, 12-leaf, 12pcs |
| Anti roll bar | Rear |
| Steering type | Power assisted |
| Axle type | 10T Front Axle + 18T x 2 Rear Axle (hub reduction) |
| Differential lock | Cross and inter axle |
| Available ratios | 5.262 |
| Max geared speed (km/h) | 80 |
| Fuel tank | 550 liters Aluminum with lockable fuel cap |
| Driver seat | Air Suspension |
| Lighter | Yes |
| Entertainment | MP3 + radio |
| Cab maintenance tilt | Electric |
| Air conditioner | Automatic |
| Rear view mirror | Luxury Manual |
| Windows | Electric |
| Protection grid of front lamp | Yes |
Product Detail
The HONGYAN Genlyon 6X6 Tractor (Model CQ4256HYVG335) is a heavy-duty 6x6 tractor unit built for demanding haulage applications. It features a high-pressure common rail engine delivering 430 HP / 316 kW, a robust bottle-neck double chassis frame, and a 10T front axle with 18T x 2 rear axles with hub reduction for superior traction and load capacity. The long cab with sleeper provides driver comfort, while the desert air filter and EURO V emission compliance make it suitable for harsh operating environments.
