LiuGong

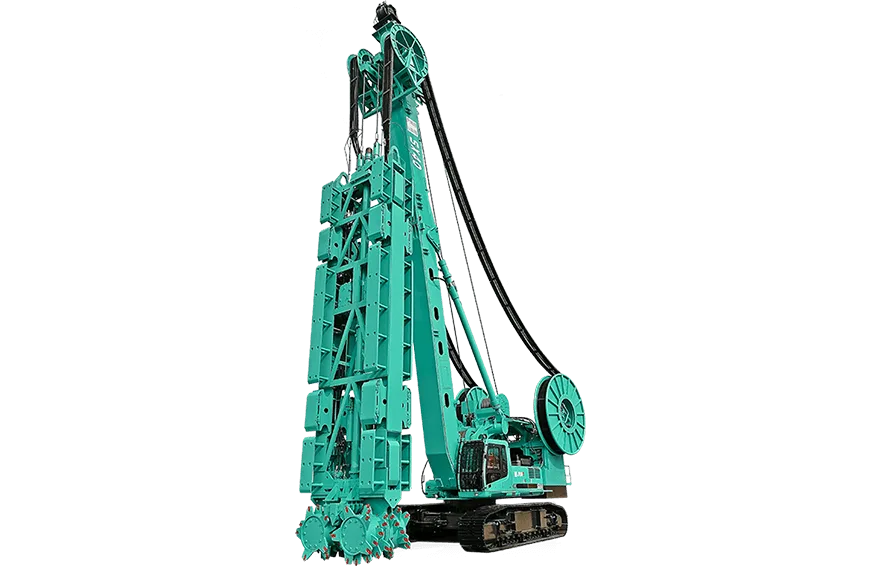

SX40-A
SX40-A trench cutter with 2×100 kN·m output torque, 0.8-1.5 m wall width and 80 m wall depth, suitable for various soil conditions with accurate slotting verticality.
Inspection File
- Suitable for various soil condition
- Airlift for slag
- Accurate slotting verticality
- Cut and joint process
- Low noise, low vibration and less pollution
- Separation of slag and recycling of bentonite
- Humanized control system
- Cutting and grabbing multi-function combination
Specifications
| Wall width | 0.8-1.5 m |
|---|---|
| Output torque of trench cutter | 120×2 kN·m |
| Pull force of winch | 2×350 kN |
| Main pump flow | 2×380+130+330 L/min |
| Total Weight (w/o cutter wheel) | 98 t |
| Power Rotation speed | 300@1900 rpm |
| Power | 110+45 kW |
| Track shoe outer distance | 3450-4600 mm |
| Towing force | 630 kN |
| Wall depth | 80 m |
| Rotation speed Max of trench cutter | 0-25 rpm |
| System pressure | 33 MPa |
| Weight of Cutter Wheel | 40(B=1500) t |
| Diesel | Cummins QSM11 |
| Electric motor | Y315S+Y225M |
| Model of undercarriage | SH36-R455LC-7 JT90 |
| Track shoes width | 800 mm |
| Crawler speed | 1.5 km/h |
Product Detail
The LiuGong SX40-A is a hydraulic trench cutter engineered for diaphragm wall construction in municipal and general foundation projects. It is suitable for various soil conditions and delivers accurate slotting verticality. The machine features an airlift system for slag removal, cut and joint process capability, low noise, low vibration and less pollution. It provides separation of slag and recycling of bentonite, a humanized control system, and cutting and grabbing multi-function combination. The SX40-A delivers an output torque of 2×100 kN·m, a wall width of 0.8-1.5 m and a wall depth of 80 m.
