LiuGong

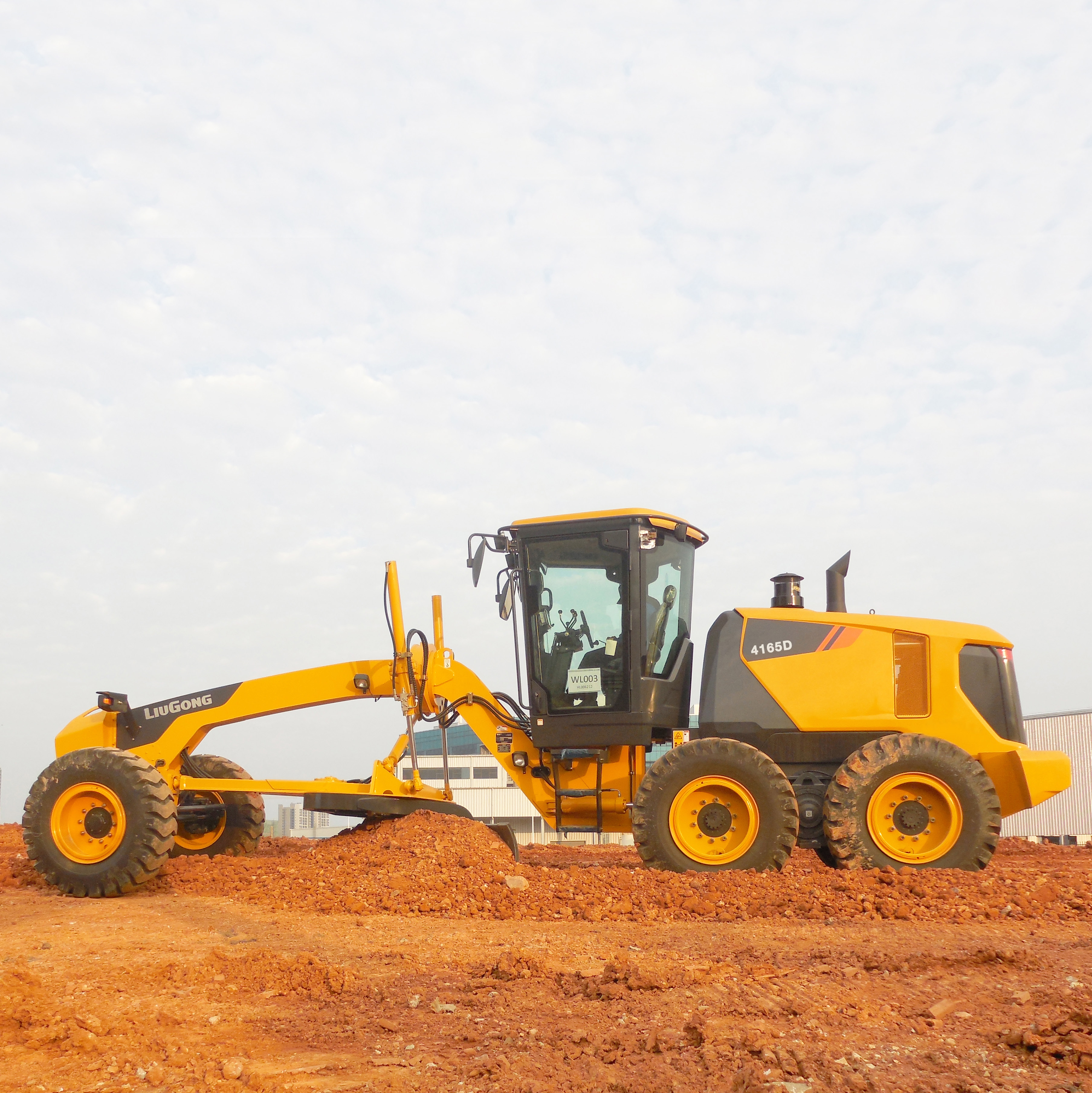

MG 4165D Motor Grader
LiuGong MG 4165D motor grader with 14,370~17,110 kg operating weight, 3,660 mm moldboard and 77 kN maximum draw pull, powered by a Cummins 6BTAA5.9-C180 engine.
Specifications
| Emission Regulation | Tier 2 / Stage II |
|---|---|
| Manufacturer | Cummins |
| Model | 6BTAA5.9-C180 |
| Rated Power | 132 kW @ 2,200 rpm |
| Maximum Torque | 800 N·m @ 1400 rpm |
| Number of Cylinders | 6 |
| Aspiration | Turbo & air-to-air intercooled |
| Transmission Type | Power shift |
| Torque Converter | Single stage, three elements |
| Maximum Travel Speed, fwd | 42 km/h |
| Maximum Travel Speed, rev | 26.5 km/h |
| Number of Speeds, fwd | 6 |
| Number of Speeds, rev | 3 |
| Differential Type | Limited slip standard |
| Final Drive Type | Chain drive |
| Axle Oscillation | ±16° |
| Front Axle, Wheel Lean Angle | Left / right 18° |
| Steering Configuration | Load sensing steering gear |
| Steering Relief Pressure | 17.2 MPa |
| Minimum Turning Radius | 7,200 mm |
| Steering Angle | ±50° |
| Frame Articulation Angle | ±27° |
| Service Brake Type | Drum brake |
| Service Brake Location | Rear axle |
| Tire Size | 17.5-25 |
| Main Pump Type | Gear |
| Main Relief Pressure | 20 MPa |
| Main Pump Flow | 122 L/min |
| Maximum Draw Pull | 77 kN |
| Cutting Pressure | 7,300 kg |
| Tandem Height | 560 mm |
| Tandem Width | 210 mm |
| Tandem Center Distance | 1,540 mm |
| Bank Cut Angle | 28~74° |
| Moldboard Lift Above Ground | 600 mm |
| Moldboard Side Shift, left/right | 660 / 740 mm |
| Maximum Sloping Angle | 90° |
| Cutting Depth | 680 mm |
| Circle Rotation | 360° |
| Circle Diameter | 1,455 mm |
| Circle Thickness | 140 mm |
| Wheelbase | 6,230 mm |
| Overall Length | 9,090 mm |
| Overall Width | 2,600 mm |
| Overall Height with Cab | 3,380 mm |
| Clearance under Front Axle | 602 mm |
| Moldboard Standard Length | 3,660 mm |
| Moldboard Standard Thickness | 19 mm |
| Moldboard Standard Height | 610 mm |
| Operating Weight | 14,370~17,110 kg |
| Fuel Tank | 348 L |
| Engine Oil | 18 L |
| Cooling System | 35 L |
| Hydraulic Reservoir | 115 L |
| Transmission and Torque Converter | 33 L |
| Tandems, centre, left, right | 24, 26, 26 L |
| Optional Equipment | Ripper; Front Dozer; Oil Bath Air Filter; ROPS&FOPS Cab |
Product Detail
The LiuGong MG 4165D is a motor grader with an operating weight of 14,370~17,110 kg and a standard moldboard length of 3,660 mm. It is powered by a Cummins 6BTAA5.9-C180 engine rated at 132 kW @ 2,200 rpm with a maximum torque of 800 N·m @ 1,400 rpm, and delivers a maximum draw pull of 77 kN.
The machine uses a power shift transmission with a single stage, three element torque converter, six forward and three reverse speeds, and a maximum travel speed of 42 km/h forward. The moldboard offers a bank cut angle of 28~74°, a maximum sloping angle of 90°, a cutting depth of 680 mm and 360° circle rotation.
