LiuGong

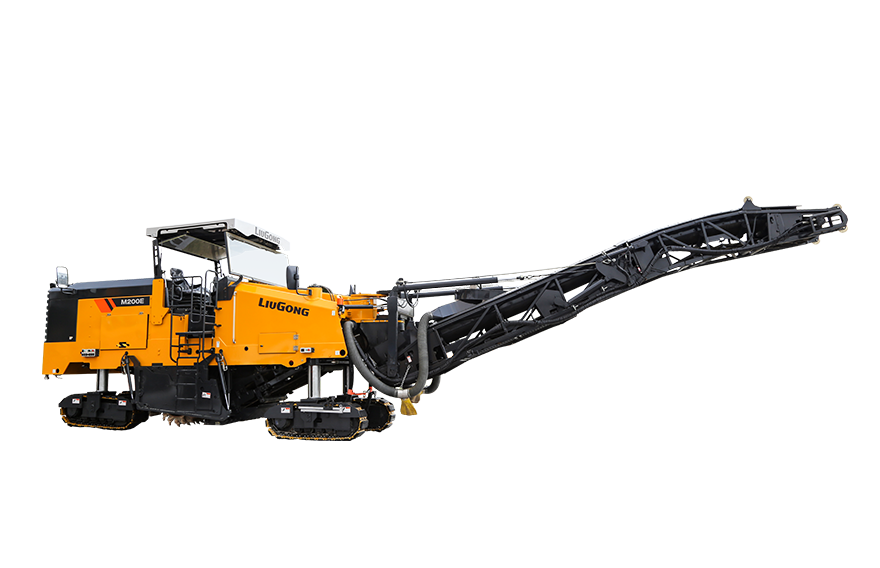

M200E Cold Planer
The LiuGong M200E is a large tracked cold planer (road milling machine) engineered for high-efficiency asphalt and concrete pavement milling. With a 2,000 mm milling width, up to 330 mm milling depth and a powerful 563 kW Cummins engine, it delivers outstanding productivity for highway and airport runway rehabilitation projects.
RFQ basis
Inspection File
- 2,000 mm milling width for large-scale pavement rehabilitation
- 563 kW Cummins M15CS3 engine delivering high productivity
- Up to 330 mm milling depth with 95 m/min milling speed
Specifications
| Operating weight | 30500 kg |
|---|---|
| Milling width | 2000 mm |
| Milling depth | 0~330 mm |
| Number of Tools | 146 / 162 / 276 |
| Rated power | 563 kW (755 hp / 765 ps) @ 2,100 rpm |
| Travel speed | 0-6 km/h |
| Gradeability | 20% |
| Hydraulic Fluid Tank | 200 L |
| Shipping Length | 14500 mm |
| Shipping width | 2550 mm |
| Shipping height | 4260 mm |
| Tool Spacing | 18mm/15mm/8mm |
| Model | Cummins M15CS3 |
| Emission | China III |
| Milling Speed | 0-95 m/min |
| Fuel Tank | 1120 L |
| Water tank | 3180 L |
Product Detail
The LiuGong M200E cold planer is a heavy-duty road milling machine designed for large-scale pavement rehabilitation. It combines a powerful 563 kW (755 hp / 765 ps) Cummins M15CS3 engine with a 2,000 mm milling width and up to 330 mm milling depth, enabling efficient removal of asphalt and concrete surfaces. The machine features a high-capacity 3,180 L water tank for dust suppression, a 1,120 L fuel tank for extended operation, and a maximum travel speed of 6 km/h. With a gradeability of 20% and milling speed up to 95 m/min, the M200E delivers reliable performance across demanding road construction and maintenance applications.
