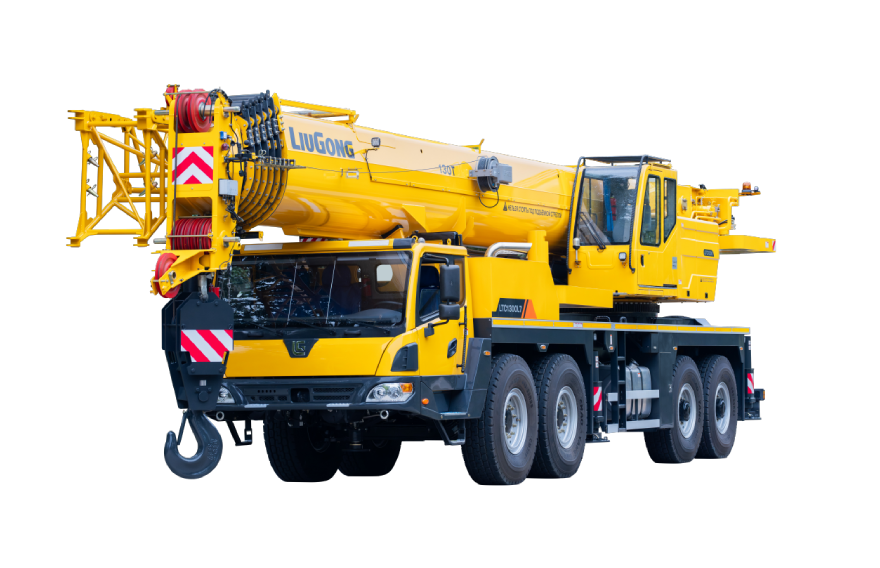

LTC1300L7-EU5 Truck Crane
130-ton truck crane with a 71.5m full-extension main boom and 4,000 kN·m maximum torque, engineered for maximum safety and reliability.
RFQ basis
Read MoreSpecifications
| Max. rated lifting capacity | 130 t |
|---|---|
| Engine model | Z10E410 51 (Euro V) |
| Max. rated power of the engine | 301/1,900 kW/(r/min) |
| Outrigger span | 8.1×6.685 m |
| Boom extension time | 750/700 s |
| Dimensions (L x W x H) | 15,330×2,800×4,000 mm |
| Max. travel speed | 85 km/h |
| Max. lifting speed: Main winch (No load) | 130 m/min |
| The axle distance | 1,650+4,800+1,650 mm |
| Max. rated torque of the engine | 2,000/1,400 N·m/(r/min) |
| Min. turning diameter | 22 m |
| Boom luffing time | 65/145 s |
| Max. slewing speed | 1.7 r/min |
| The total weight during driving | 53,600 kg |
| Approach and departure angle | 19°/16° |
| Max. lifting speed: Auxiliary winch (No load) | 130 m/min |
Product Detail
LTC1300L7 is engineered to deliver maximum safety and reliability in demanding conditions. Safety is prioritized through a high-strength anti-torsion frame for superior stability, a high-voltage electric alarm system, and comprehensive onboard protection including LMI, triple-circle projection, height limitation, reversing cameras, and emergency steering. The 20° pitching, high-visibility cab with tempered glass and anti-corrosion steel ensures an ultra-wide field of view for operator safety. For enhanced productivity, maintenance is simplified with easy access points, while the fuel-efficient Cummins engine and FAST 12-speed automatic gearbox provide up to 10,000 hours between overhauls.
The advanced hydraulic system, featuring a variable displacement pump and load-sensing post-compensation valve, enables smooth and precise operation, supported by a dual-rotation system and two-stage low-pressure buffering for stable rotation. Built on a G-class chassis with 420 mm ground clearance and 445-size tires, it excels on complex terrain. Lifting performance leads the industry with a 71.5 m full-extension main boom, 4,000 kN·m maximum torque, and dead-weight luffing for stable, energy-efficient operation.
The variable-displacement winch motor (80–107 cc) achieves line speeds up to 120 m/min, and the crane supports short-distance transfer of 19 t with wireless remote control. This combination of safety, efficiency, and power ensures unmatched performance and uptime.
