HONGYAN

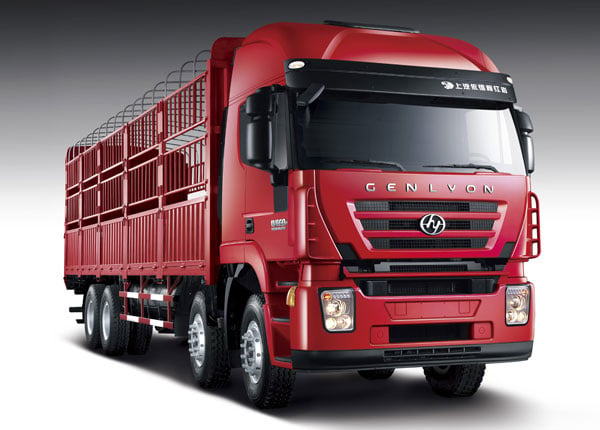

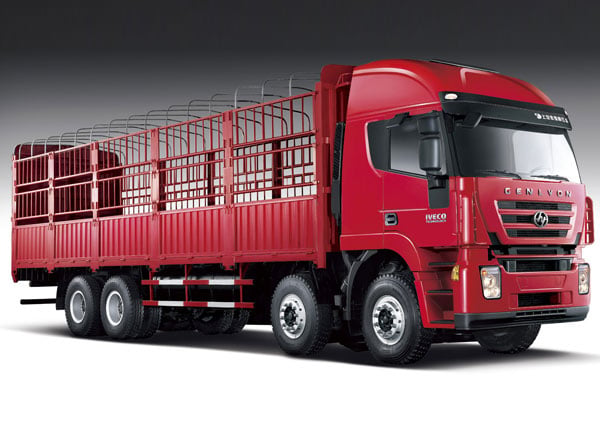

8×4 Euro III Cargo Truck (Kingkan)
8×4 Euro III cargo truck with WD615.50 engine, single plate Φ430mm large diaphragm spring clutch and a firm cargo body in different styles.
RFQ basis
Read MoreSpecifications
| Model | CQ1314HMG466 / CQ1314HTG466 |
|---|---|
| Driving type | 8x4 |
| Emission standard | Euro 3 |
| Vehicle kerb mass (kg) | 11400 / 12850 |
| Gross vehicle weight (kg) | 31000 / 31000 |
| Maximum speed (km/h) | 90 / 90 |
| Wheelbase (mm) | 1800+4600+1400 / 1800+4600+1400 |
| Driver's cabin | Flat roof cab with one sleeper / Flat roof cab with one sleeper |
| Exterior dimension L (mm) | 11990 / 11990 |
| Exterior dimension W (mm) | 2500 / 2500 |
| Exterior dimension H (mm) | 3226 / 3226 |
| Engine model | WeichaiWP10.340E32 / WeichaiWP10.380E32 |
| Horsepower (hp) | 340 / 380 |
| Emission (L) | 9.72 / 9.72 |
| Torque (Nm) | 1350 / 1460 |
| Gearbox | FAST 10 gears / FAST 12 gears |
| Front axle | 5.5T / 7.5T |
| Drive axle | 457 / HY300S |
| Tyre | 11.00 R20 / 11.00 R20 |
| Truck frame | Double truck frame / Double truck frame |
| Fuel tank (L) | 400 / 400 |
| Options - Wheelbase | 1800+3000-4600+1400 |
| Options - Driver's cabin | High roof cab with twin sleeper, flat roof cab with one narrow sleeper |
| Options - Front axle | 9.5T |
| Options - Fuel tank | 350, 600 |
| Note | The right-hand drive truck model is optional. |
Product Detail
Our 8×4 cargo truck adopts WD615.50 engine, uses single plate Φ430mm large diaphragm spring clutch, and conforms to Euro II emission standards. This cargo truck has the strength and durability to keep your operation at top performance. The Genlyon Euro III 8×4 cargo truck is configured with SFH's cursor engine that features excellent power performance. Its firm cargo body can be designed in different styles, facilitating wonderful transportation with high efficiency and cost efficiency.
