LiuGong
6611E Roller

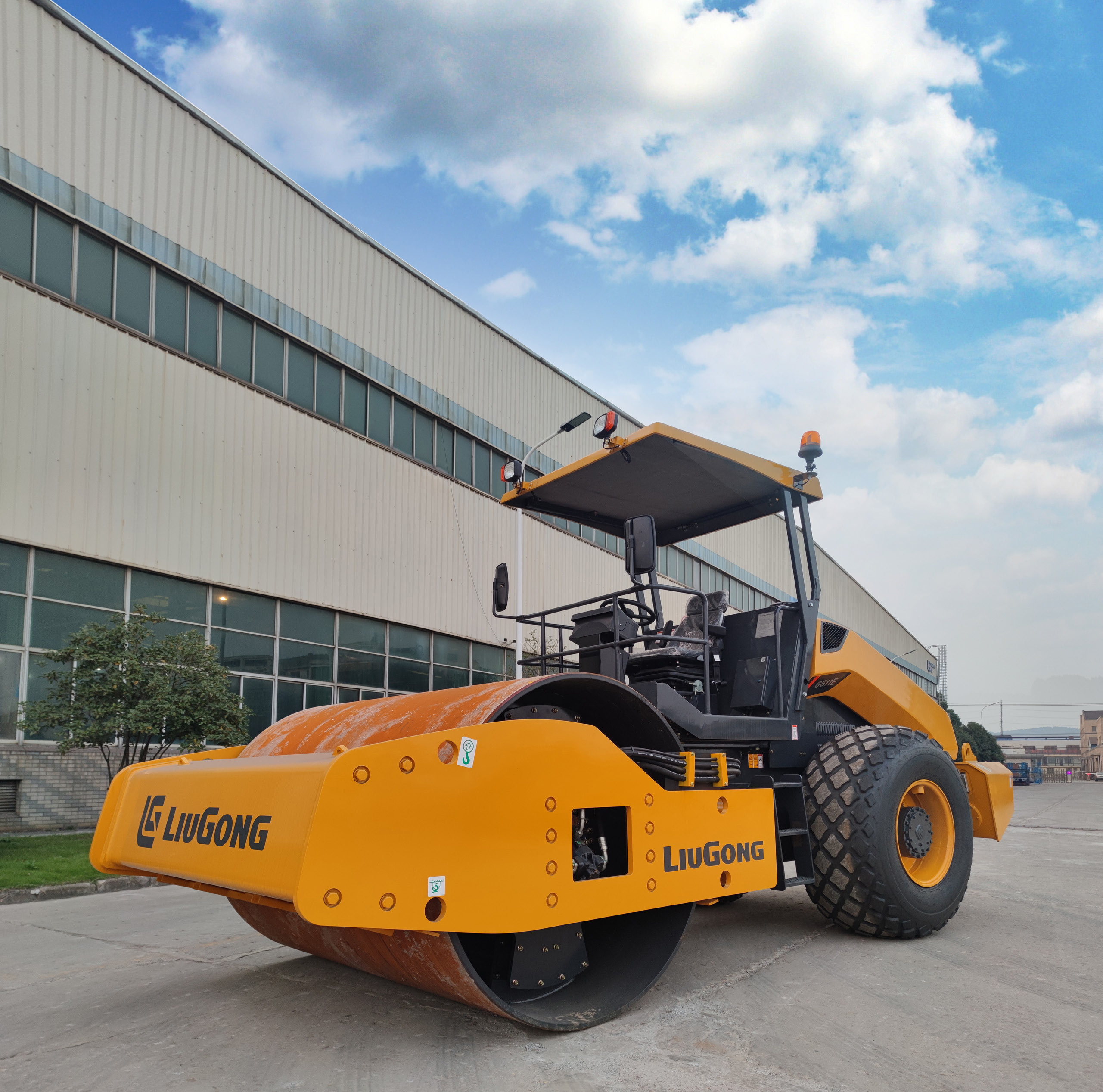

LiuGong 6611E single-drum vibratory roller with 11,000 kg operating mass, 2,130 mm working width and 300/220 kN centrifugal force, powered by a Cummins 4BTAA3.9-C125 engine.
RFQ basis
Read MoreSpecifications
| Emission Regulation | Tier 2 / Stage II |
|---|---|
| Manufacturer | Cummins |
| Model | 4BTAA3.9-C125 |
| Rated Power | 93 kW (125 hp / 126 ps) @ 2,200 rpm |
| Peak Torque | 480 N·m |
| Number of Cylinders | 4 |
| Aspiration | Turbo & air-to-air aftercooled |
| Cooling Type | Water |
| System Voltage | 24 V |
| Theoretical Gradeability | 45% |
| Transmission Type | Hydraulic |
| 1st Maximum Speed | 6.5 km/h |
| 2nd Maximum Speed | 10.5 km/h |
| Min. Outside Turning Radius | 6,500 mm |
| Steering System | Hydraulic |
| Steering Method | Articulation |
| Steering Angle | ± 35° |
| Steering Relief Pressure | 16 MPa |
| Service Brake Type | Hydraulic |
| Service Brake Actuation | Hydraulic |
| Parking Brake Actuation | Mechanical apply; Hydraulic release |
| Tire Size | 23.1-26-12PR |
| Tire Pressure | 200-220 kPa |
| Main Pump Type | Piston Pump |
| Main Relief Pressure | 35 MPa |
| Static Linear Front Drum Load | 291 N/cm |
| Number of Vibrating Drums | 1 |
| Nominal Amplitude Range | 1.8 / 1.3 mm |
| Vibration Frequency Range | 32 / 33 Hz |
| Centrifugal Force Range | 300 / 220 kN |
| Number of Amplitude Settings | 2 |
| Operating Mass with Ballast | 11,000 kg |
| Mass on Vibrating Drum | 6,200 kg |
| Mass on Drive Axle | 4,800 kg |
| Fuel Tank | 200 L |
| Engine Oil | 11 L |
| Hydraulic Oil Tank | 110 L |
| Cooling System | 28 L |
| A Overall Length | 6,000 mm |
| B Overall Width | 2,280 mm |
| C Drum Width | 2,130 mm |
| D Drum Diameter | 1,555 mm |
| E Drum Thickness | 30 mm |
| F Wheelbase | 2,980 mm |
| G Min. Ground Clearance | 470 mm |
| H Overall Height | 3,180 mm |
| Optional Equipment | Close CAB; Compaction Meter |
Product Detail
The LiuGong 6611E is a single-drum vibratory roller with an operating mass of 11,000 kg and a 2,130 mm working width. It is powered by a Cummins 4BTAA3.9-C125 engine rated at 93 kW (125 hp / 126 ps) at 2,200 rpm and delivers a centrifugal force range of 300 / 220 kN at 32 / 33 Hz.
The machine uses a hydraulic transmission with theoretical gradeability of 45%, articulated hydraulic steering with a steering angle of ±35°, and a minimum outside turning radius of 6,500 mm. Two amplitude settings are available, with a nominal amplitude range of 1.8 / 1.3 mm.
