LiuGong

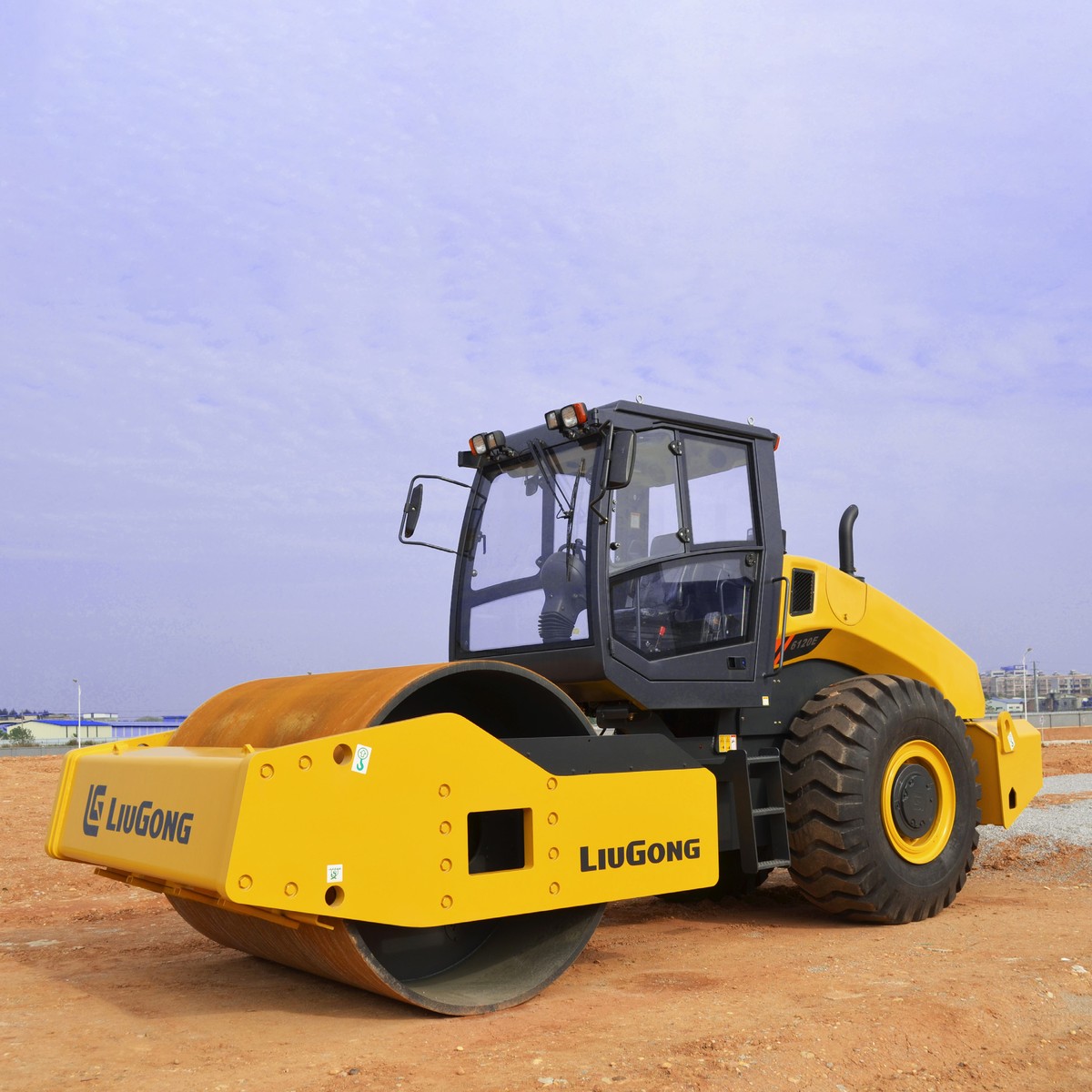

6120E Single Drum Vibratory Roller
Single drum vibratory roller with 20,000 kg operating mass, 155 kW rated power and 2,130 mm working width for heavy-duty compaction.
Specifications
| Emission Regulation | Tier 2 / Stage II |
|---|---|
| Engine Manufacturer | Shangchai |
| Engine Model | SC7H210.1G2 |
| Rated Power | 155 kW (208 hp / 211 ps) @ 2,000 rpm |
| Maximum Torque | 937 N·m |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Cooling Type | Water |
| System Voltage | 24 V |
| Theoretical Gradeability | 30 % |
| Transmission Type | Mechanical |
| 1st Maximum Speed, Fwd | 2.7 km/h |
| 2nd Maximum Speed, Fwd | 5.2 km/h |
| 3rd Maximum Speed, Fwd | 11 km/h |
| Min. Outside Turning Radius | 7,000 mm |
| Steering System | Hydraulic |
| Steering Method | Articulation |
| Steering Angle | ± 35° |
| Steering Relief Pressure | 16 MPa |
| Service Brake Type | Disc brake |
| Service Brake Actuation | Air over hydraulic |
| Parking Brake Actuation | Mechanical brake |
| Tire Size | 23.5-25-16PR |
| Tire Pressure | 300-330 kPa |
| Main Pump Type | Piston pump |
| Main Relief Pressure | 35 MPa |
| Static Linear Front Drum Load | 469 N/cm |
| Number of Vibrating Drums | 1 |
| Nominal Amplitude Range | 2.0 / 1.3 mm |
| Vibration Frequency Range | 28 / 32 Hz |
| Centrifugal Force Range | 380 / 320 kN |
| Number of Amplitude Settings | 2 |
| Operating Mass | 20,000 kg |
| Mass on Vibrating Drum | 10,000 kg |
| Mass on Drive Axle | 10,000 kg |
| Fuel Tank | 285 L |
| Engine Oil | 20 L |
| Hydraulic Oil Tank | 120 L |
| Cooling System | 32 L |
| A Overall Length | 6,680 mm |
| B Overall Width | 2,340 mm |
| C Drum Width | 2,130 mm |
| D Drum Diameter | 1,600 mm |
| E Drum Thickness | 45 mm |
| F Wheelbase | 3,230 mm |
| G Min. Ground Clearance | 450 mm |
| H Overall Height | 3,150 mm |
| Optional Equipment | Padfoot drum, rotating beacon, reverse alarm |
Product Detail
The LiuGong 6120E single drum vibratory roller is a 20-ton class compactor designed for heavy-duty road and infrastructure compaction. It is powered by a Shangchai SC7H210.1G2 turbocharged, water-cooled six-cylinder diesel engine rated at 155 kW (208 hp / 211 ps) @ 2,000 rpm with a maximum torque of 937 N·m.
The compaction system delivers a centrifugal force range of 380 / 320 kN with a nominal amplitude range of 2.0 / 1.3 mm and a vibration frequency range of 28 / 32 Hz across two amplitude settings. The 2,130 mm wide drum and 469 N/cm static linear drum load support efficient coverage, while the 20,000 kg operating mass is distributed evenly with 10,000 kg on the vibrating drum and 10,000 kg on the drive axle.
A mechanical transmission provides three forward speed ranges of 2.7 km/h, 5.2 km/h and 11 km/h, and the articulated hydraulic steering with a ± 35° steering angle and a 7,000 mm minimum outside turning radius keeps the machine maneuverable. Service capacities include a 285 L fuel tank, a 120 L hydraulic oil tank and a 32 L cooling system. The machine rides on 23.5-25-16PR tires at 300-330 kPa. Optional equipment includes a padfoot drum, a rotating beacon and a reverse alarm.
