LiuGong

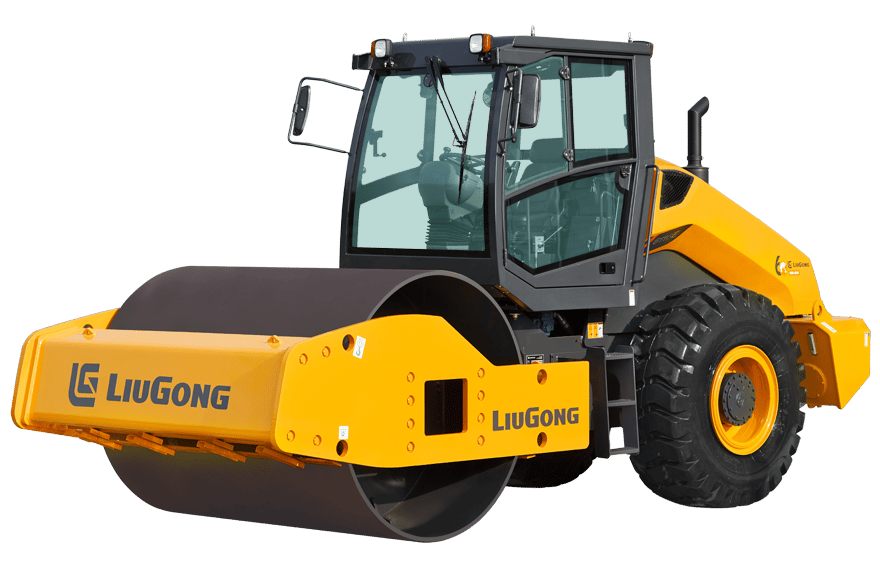

6116E Single Drum Vibratory Roller
Single drum vibratory roller with 16,000 kg operating weight and 103 kW rated power for efficient road compaction.
RFQ basis
Inspection File
- Vibratory bearing working life beyond 5,000 hours
- Larger diameter drum for optimum compaction force
- Patented cooling technology keeps drum temperature 20° lower
Specifications
| Operating Mass | 16,000 kg |
|---|---|
| Mass On Drive Axle | 8,000 kg |
| Model | Shangchai SC4H140.2G2 |
| Rated Power | 103 kW (140 hp) @ 2000 rpm |
| Nominal Amplitude | 2.0/1.2 mm |
| Drum Diameter | 1,555 mm |
| 2nd Maximum Speed, fwd | 5.2 km/h |
| Theoretical Gradeability | 30% |
| Wheelbase | 2,950 mm |
| Overall Length | 6,000 mm |
| Overall Height | 3,050 mm |
| Mass On Vibrating Drum | 8,000 kg |
| Front Drum Static Linear Load | 376 N/cm |
| Emission Regulation | Stage II |
| Vibration Frequency | 30 Hz |
| Centrifugal Force | 300/180 kN |
| 1st Maximum Speed, fwd | 2.7 km/h |
| 3rd Maximum Speed, fwd | 11 km/h |
| Min. Ground Clearance | 450 mm |
| Min. Outside Turning Radius | 6,500 mm |
| Overall Width | 2,280 mm |
Product Detail
The LiuGong 6116E single drum vibratory roller delivers efficient compaction for road construction. Flexible and non-impact technology on the vibratory rollers extends the vibratory bearing's working life to beyond 5,000 hours, increasing productivity and reducing part wear. With a larger diameter drum combined with amplitude consistency and uniformity, it ensures the optimum compaction force is delivered with fewer passes required. Patented cooling technology inside the drum keeps temperatures balanced at around 90° centigrade, 20° lower than the industry average, helping prolong component life and reduce maintenance.
