6114E Single Drum Vibratory Roller
Single drum vibratory roller with 14,000 kg operating mass, 103 kW rated power and 2,130 mm working width for road compaction.
Specifications
| Emission Regulation | Tier 2 / Stage II |
|---|---|
| Engine Manufacturer | Shangchai |
| Engine Model | SC4H140.2G2 |
| Rated Power | 103 kW (138 hp / 140 ps) @ 2,000 rpm |
| Peak Torque | 535 N·m |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Cooling Type | Water |
| System Voltage | 24 V |
| Theoretical Gradeability | 30 % |
| Transmission Type | Mechanical |
| 1st Maximum Speed, Fwd | 2.7 km/h |
| 2nd Maximum Speed, Fwd | 5.2 km/h |
| 3rd Maximum Speed, Fwd | 11 km/h |
| Min. Outside Turning Radius | 6,500 mm |
| Steering System | Hydraulic |
| Steering Method | Articulation |
| Steering Angle | ± 35° |
| Steering Relief Pressure | 16 MPa |
| Service Brake Type | Caliper dry disc |
| Service Brake Actuation | Air over hydraulic |
| Parking Brake Actuation | Mechanical brake |
| Tire Size | 17.5-25-12PR |
| Tire Pressure | 300-330 kPa |
| Main Pump Type | Gear Pump |
| Main Relief Pressure | 20 MPa |
| Static Linear Front Drum Load | 329 N/cm |
| Number of Vibrating Drums | 1 |
| Nominal Amplitude Range | 2.0 / 1.2 mm |
| Vibration Frequency Range | 30 Hz |
| Centrifugal Force Range | 280 / 170 kN |
| Number of Amplitude Settings | 2 |
| Operating Mass with Ballast | 14,000 kg |
| Mass on Vibrating Drum | 7,000 kg |
| Mass on Drive Axle | 7,000 kg |
| Fuel Tank | 200 L |
| Engine Oil | 14 L |
| Hydraulic Oil Tank | 110 L |
| Cooling System | 32 L |
| A Overall Length | 6,000 mm |
| B Overall Width | 2,280 mm |
| C Drum Width | 2,130 mm |
| D Drum Diameter | 1,555 mm |
| E Drum Thickness | 30 mm |
| F Wheelbase | 2,950 mm |
| G Min. Ground Clearance | 450 mm |
| H Overall Height | 3,050 mm |
| Optional Equipment | Padfoot Drum Segment Kit (PDH) |
Product Detail

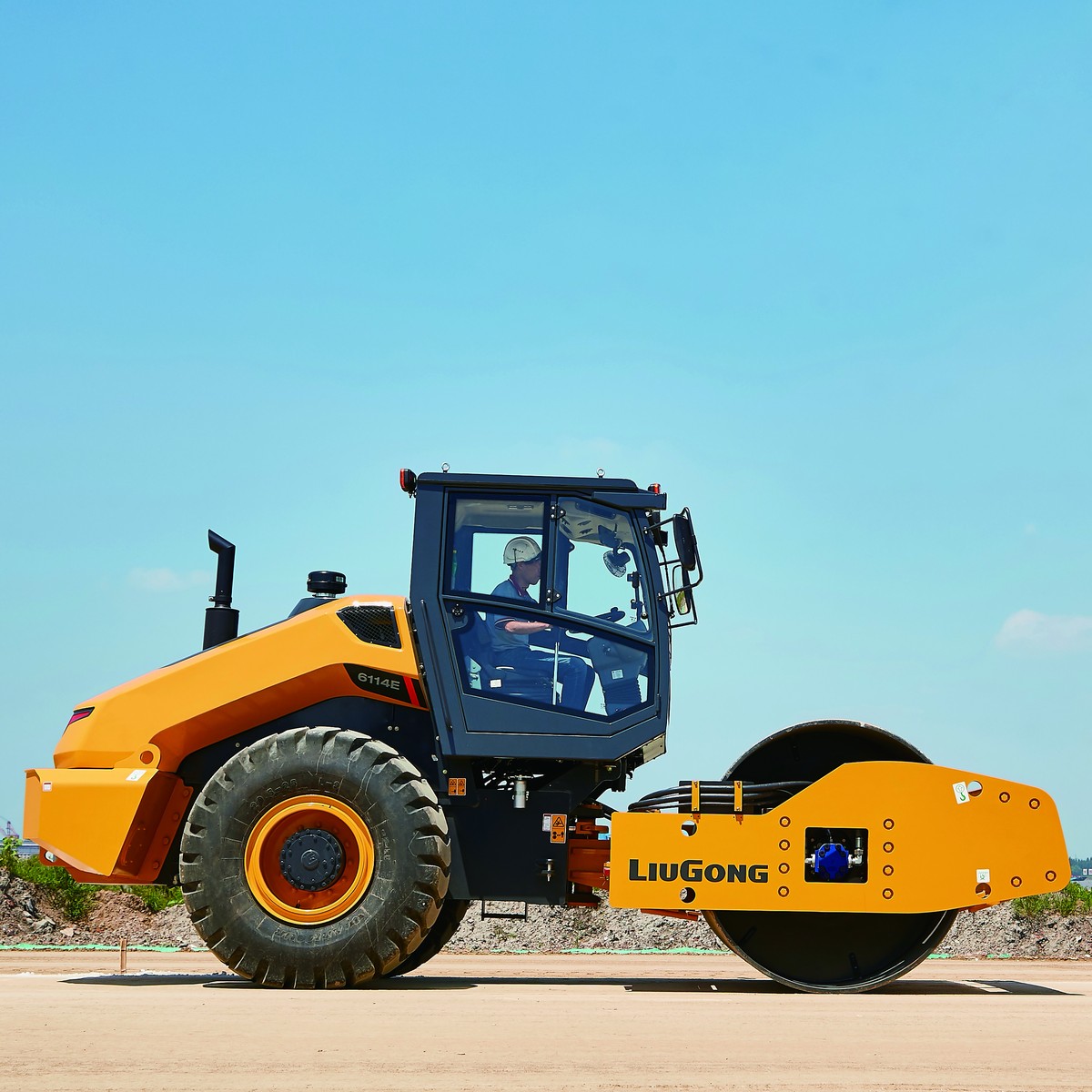

The LiuGong 6114E single drum vibratory roller is a 14-ton class compactor built for road construction and maintenance. Powered by a Shangchai SC4H140.2G2 turbocharged diesel engine rated at 103 kW (138 hp / 140 ps) @ 2,000 rpm, it delivers a centrifugal force range of 280 / 170 kN with a nominal amplitude range of 2.0 / 1.2 mm and a vibration frequency of 30 Hz.
The 2,130 mm wide drum and 329 N/cm static linear front drum load provide efficient compaction coverage, while the articulated hydraulic steering with a ± 35° steering angle and a minimum outside turning radius of 6,500 mm keeps the machine maneuverable on confined job sites. A mechanical transmission with three forward speed ranges of 2.7 km/h, 5.2 km/h and 11 km/h supports both compaction passes and travel.
Serviceability is supported by a 200 L fuel tank, a 110 L hydraulic oil tank and a 32 L cooling system. The machine rides on 17.5-25-12PR tires at 300-330 kPa. A padfoot drum segment kit (PDH) is available as optional equipment.
