LiuGong

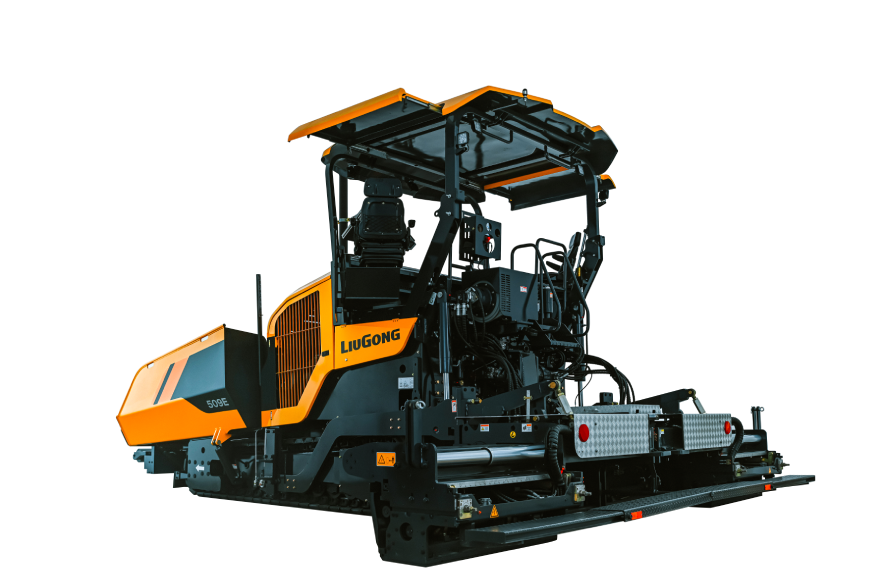

509E Asphalt Paver
Operating weight 27,300 kg | Rated power 169 kW @ 2,000 rpm | Paving width range 3 - 9 m
RFQ basis
Inspection File
- CAN Intelligent Digital Control System for consistent quality
- Automatic leveling from two hydraulic conveyor systems
- Large capacity 16 ton hopper
- ECO mode reduces fuel consumption by 12%
Specifications
| Paving Width Range | 3～9 m |
|---|---|
| Theoretical Productivity | 1000 t/h |
| Model | Cummins B7 |
| Paving Speed | 0～18 m/min |
| Hopper Capacity | 16 t |
| Smoothness | ≤2 mm (per 3 meters) |
| Tamper Frequency | 0～30 Hz |
| Tamper Swing Rear | 5 mm |
| Crown Adjustment | -1~4% |
| Paving Compactness Asphalt Stabilized Soil | ≥80% |
| Length | 7560 mm |
| Height | 3960 mm |
| Maximum Paving Thickness | 500 mm |
| Operating Mass | 27.3 t |
| Rated Power | 169 kW (227 hp / 230 ps) @ 2,000 rpm |
| Traveling Speed | 0～4 km/h |
| Gradability | 20% |
| Tamper Type | Single Tamper |
| Tamper Swing Front | - |
| Vibration Frequency | 0-45 Hz |
| Paving Compactness Asphalt | ≥90% |
| Fuel Tank Capacity | 350 L |
| Width | 3540 mm |
Product Detail
The LiuGong 509E asphalt paver is engineered for high-efficiency road paving. Its innovative CAN (Intelligent Digital Control System) helps operators set and monitor performance parameters to deliver a consistently high quality result. Automatic leveling from two hydraulic conveyor systems guarantees an even and consistent distribution of material. The large capacity 16 ton hopper is also cleverly positioned to allow material to be spread without heavy impact. With a highly efficient powertrain, including ECO mode, the 509E is not only a productive paver, it's an efficient one and can reduce fuel consumption by 12%.
