LiuGong

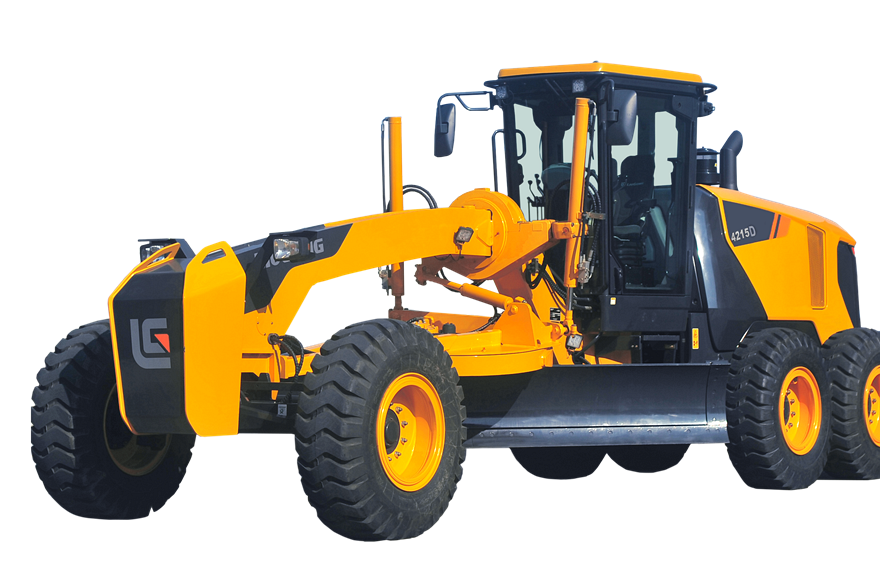

4215D Motor Grader
LiuGong 4215D motor grader with 17,200 kg operating weight, 4,270 mm blade width and 88 kN drawbar pull, powered by a fuel-efficient Cummins engine.
RFQ basis
Inspection File
- Fuel-efficient Cummins engine
- Innovative five-column, low-vibration, noise, dust and UV resistant cab
- Meritor wet axle with "no-spin" differential lock as standard
- Innovative traction frame swing adjustment mechanism
Specifications
| Operating Weight | 17,200 kg |
|---|---|
| Blade Width | 4,270 mm |
| Drawbar Pull | 88 kN |
| Maximum Speed | 40 km/h |
| Rated Power | 162 kW (217 hp / 220 ps) @ 2,200 rpm |
| Turning Radius | 7,200 mm |
Product Detail
The LiuGong 4215D motor grader is engineered for road construction, maintenance and earthmoving applications. It is powered by a fuel-efficient Cummins engine and features an innovative five-column, low-vibration cab that is resistant to noise, dust and UV. The Meritor wet axle with a "no-spin" differential lock is fitted as standard, and the innovative traction frame swing adjustment mechanism delivers precise blade control for consistent grading performance.
